Pressure Letdown Energy Recovery(Steam)

Steam Pressure Reduction Power Generation Energy Saving Technology

•Through the back pressure steam turbine, the steam heat energy is effectively converted into electric power or shaft power output, and the power generation effect is achieved when the process requirements are met.

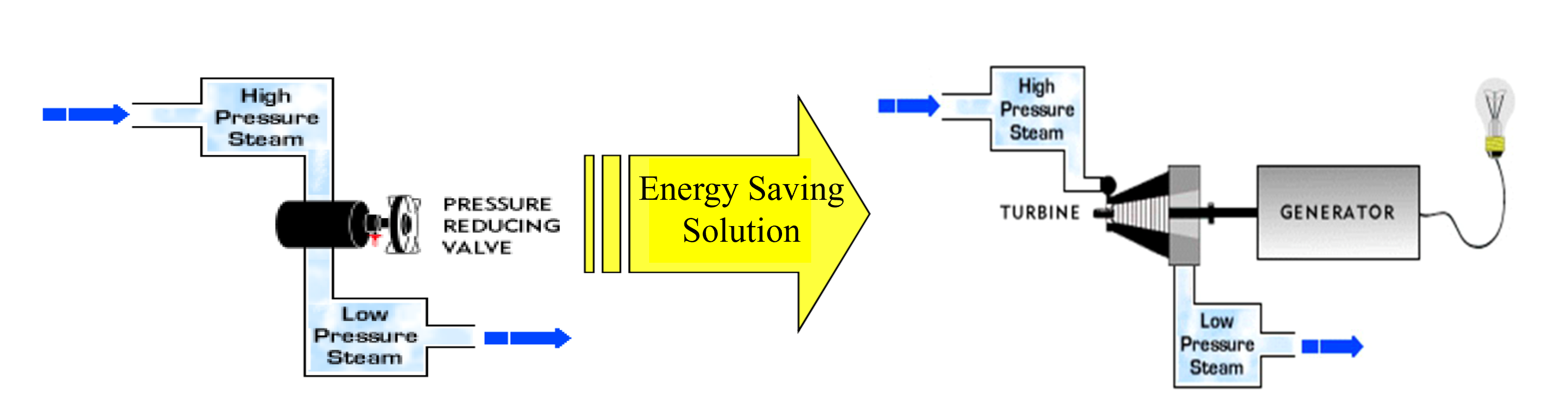

•Replacing the PRV causes energy loss during pressure reduction and regulates the demand pressure by bypassing the pressure drop power generation device.

•After the recovered steam passes through the process equipment, there is remaining available.

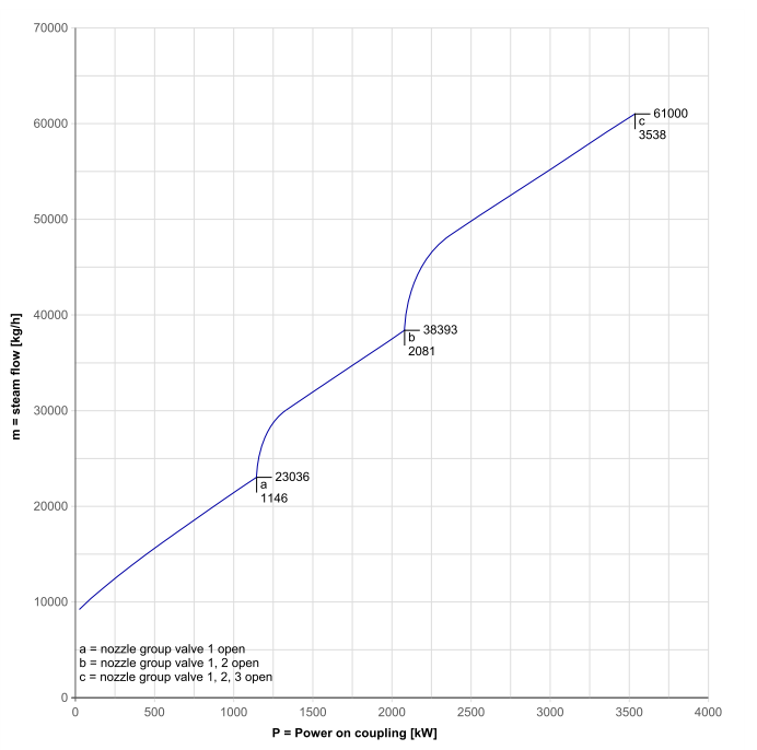

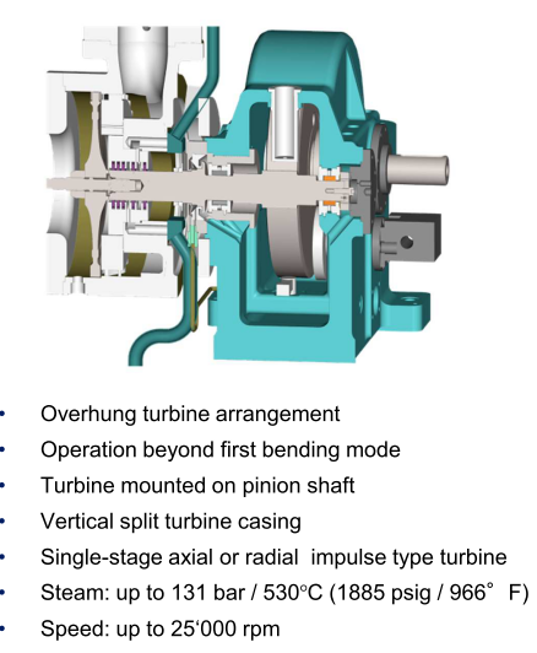

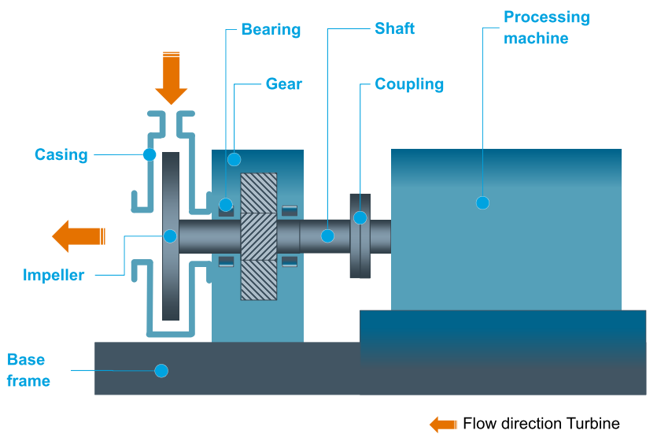

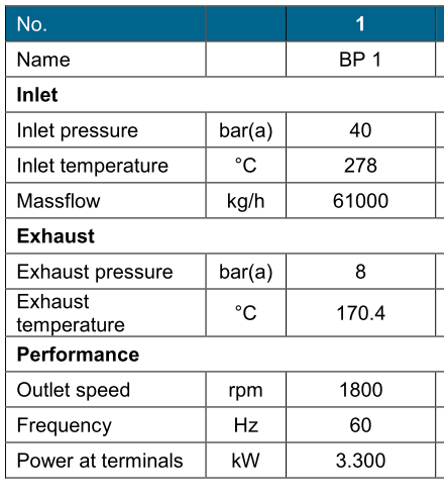

Back Pressure Steam Turbine Generator

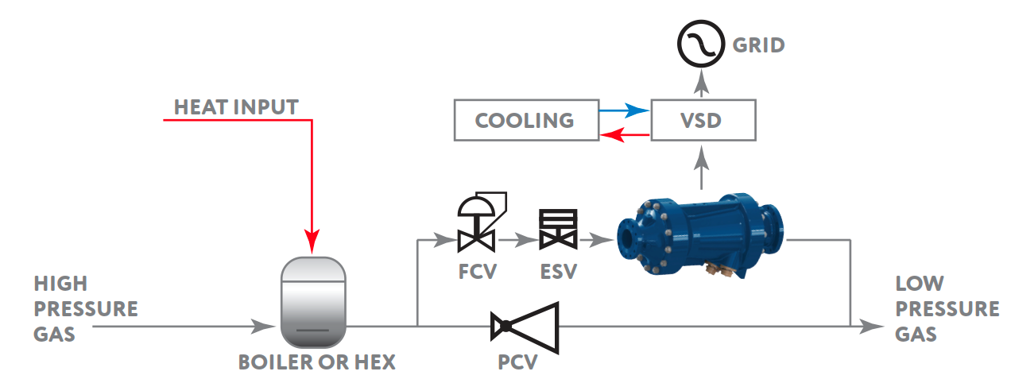

Pressure Drop Power Generation Energy Saving Technology (Non-Steam)

Usage environment

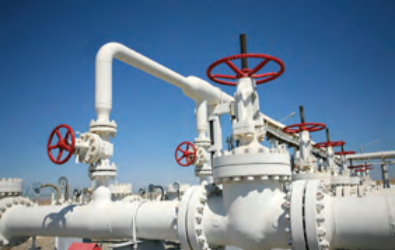

Replace pressure reducing valves to eliminate energy loss during pressure reduction, using a pressure drop generator to control the required pressure. The working fluid here includes: gaseous fossil fuels, hydrogen, nitrogen...
